100L/D Duct Dehumidifier with Single Recirculated Air Flow
100L/D Duct Dehumidifier with Single Recirculated Air Flow
100L/D Duct Dehumidifier with Single Recirculated Air Flow
100L/D Duct Dehumidifier with Single Recirculated Air Flow
100L/D Duct Dehumidifier with Single Recirculated Air Flow
100L/D Duct Dehumidifier with Single Recirculated Air Flow

100L/D Duct Dehumidifier with Single Recirculated Air Flow

  • Item No.FD-S100L
    MOQ1 Piece
Tag  sourcing
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Duct Dehumidifier FD-S100L Photo






Duct Dehumidifier FD-S100L Working Principle


working principle.png









Duct Dehumidifier FD-S100L Features










Duct Dehumidifier FD-S100L Control




Duct Dehumidifier FD-S100L Datas



MODEL

FD-S100L

Capacity(30,80%RH)

100L/D

Supply air flow(m3/h)

1000-1200

Fan speed

2-speed/variable speed

Static pressure

100 Pa

Return air flow(m3/h)

1000-1200

Power

920 W

Current

4.3A

Voltage

220V/50Hz

Control

touch screen LCD  controller

Noise level

<45DB

Compressor

Panasonic

Refrigerant

R410A

Condenser

 copper tubes with blue hydrophilic-coated aluminum fins

Drain pan

SUS304

Drain hole size

DN20

FIlter

G4+F5 efficiency (+ HEPA H13,additional cost )

Purification

 UV Air Sanitizer/Anion Generator(additional cost )

Return air duct

Φ200 mm

Supply air duct

Φ200 mm

Net weight

68kg









Duct Dehumidifier FD-S100L Size

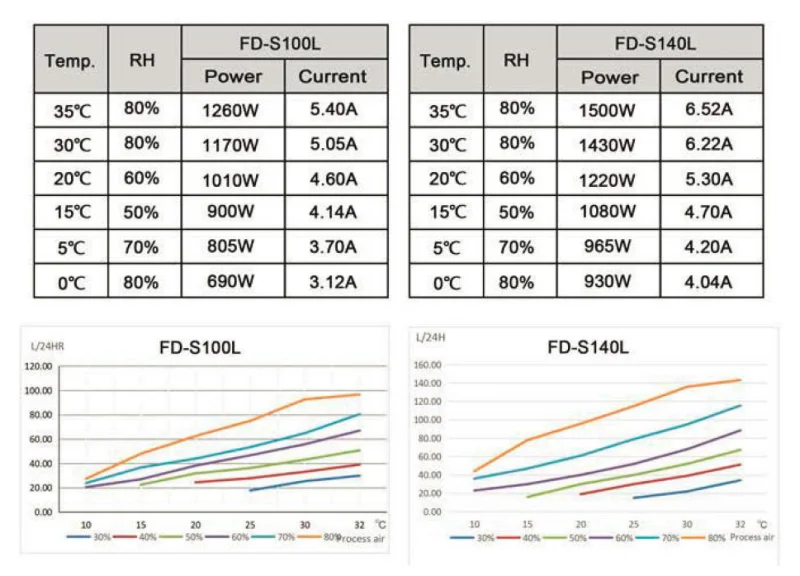

Duct Dehumidifier FD-S100L Performance











Duct Dehumidifier FD-S100L Installation
